style" mosrite of burgundya"

[ludobag]

Thanks a lot Dubtrub (i was reading your buiding bass thread earlier ,fantastic job )
in fact i will machine it cause foundry is not safe at home
at my work i can use aluminium scraps and a milling machine (non cnc)
me too i have no program to make drawing on computer (i try to use inscape but it is not easy i am not a computer guy )
but it help a lot with pics and with some savant scaling i could mesure some distance
if you can, the best is pics with no distortions (really face pics with no perspective) with a mesurement on
cause with one or 2 mesurement i will arrived to have lot of imformation

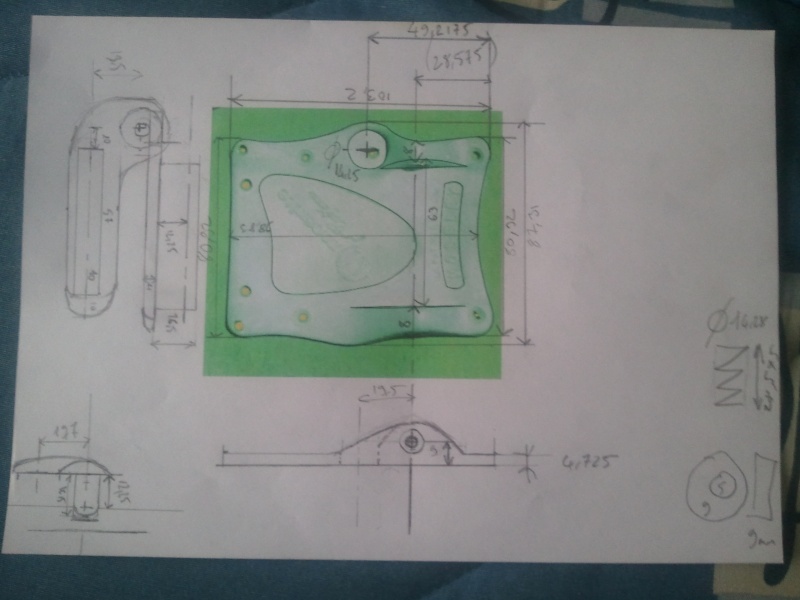

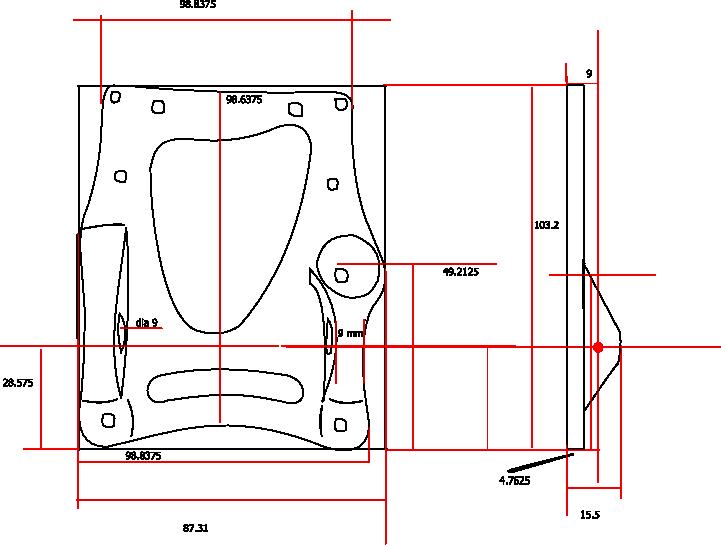

Mel help me a lot (thanks again) i have 80 % drawing (not the final but the beguin) done
at this time the drawing help me to understand how it work and how i to do to make a things that look like but not a clone ,miss again some mesurement but i try to find them

to have the good lever arm ,the right distance between the pivot and the base ,cause if it is not think before i will have some surprise when i have to do the assembly
i have to adapt the bearing size cause i have find some bearing close to b36 but narrower 5 mm thickness instead of 9 mm and it is ball bearing not needle bearing
i have to buy also a spring i find on the bay (but i have the dimentions)
cause it will be machined i am thinking of etching for the mark in in the place of moseley i will put ludobag and instead of mosrite of california mosrite of burgundia
if i can for sure but then i am sure i will not make a fake
after when i will have all the mesurement and be sure sure it work i have to think how to do the differents parts(ten years scince i have touch a milling machine )

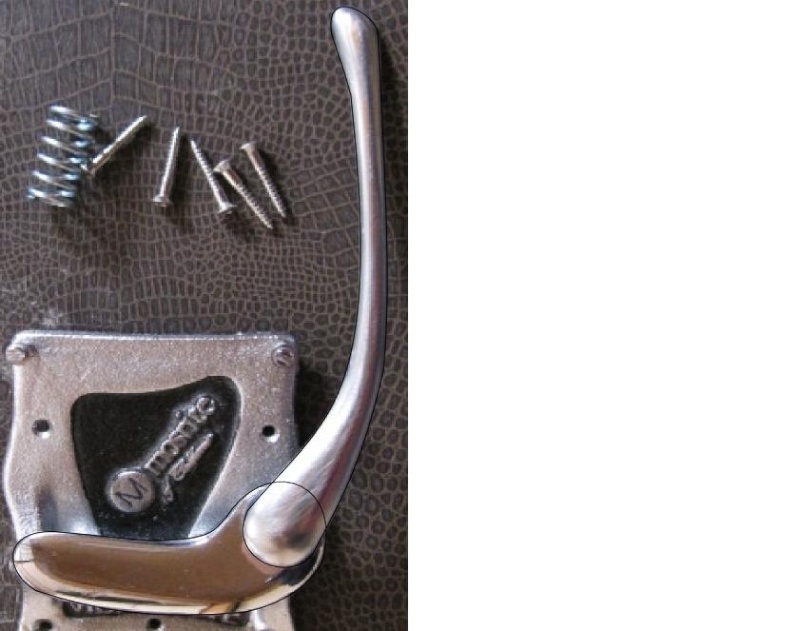

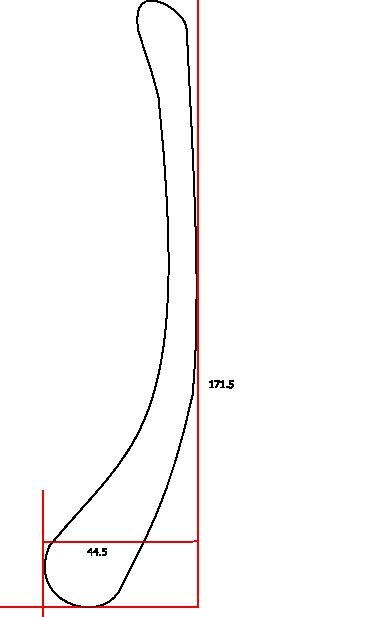

now i have the arm at scale only to cut it in rought aluminium

then with that i will have the larger of it ect.....
no really accurate but i don't know where to find a mosrite at this time near me

[ludobag]

the smallest ball bearing i find at work are
od 12 x id 6 x w 5 mm
i don't know if i go with cause i must adapt the plate to ,or if i search some like B36 but i will not be easyer i think to buy 2 bearing
also i find some scarps to make it ,a plate of aluminium of 25 mm 250 mm x 100mm with that i can do the plate and the rocking part
and another 250 mm x 70 mm but too much thick more or less 50 mm to make the arm i will search tomorow if i can find something less tick or if i have to cut this one
i have to order the spring that i have find on bay and look at for the bearing and continue the plan with 2 versions
one for bearing that i have at work and another more accurate with b 36
i find that
http://www.abc-roulements.com/product_i ... ts_id=2651
really near

[ludobag]

the smallest ball bearing i find at work are
od 12 x id 6 x w 5 mm
i don't know if i go with cause i must adapt the plate to ,or if i search some like B36 but i will not be easyer i think to buy 2 bearing
also i find some scarps to make it ,a plate of aluminium of 25 mm 250 mm x 100mm with that i can do the plate and the rocking part
and another 250 mm x 70 mm but too much thick more or less 50 mm to make the arm i will search tomorow if i can find something less tick or if i have to cut this one
i have to order the spring that i have find on bay and look at for the bearing and continue the plan with 2 versions
one for bearing that i have at work and another more accurate with b 36
i find that
http://www.abc-roulements.com/product_i ... ts_id=2651
really near

then i have buy 2 springs one heavy and one regular and this tom
http://cgi.ebay.fr/ws/eBayISAPI.dll?Vie ... 1423.l2649

it is normal that i can't edith my post sometime ?

[ludobag]

then i continue to search scraps of aluminium and i think i find the good one for the arm 200 x 50 mmx 10 mm
i have talk to my collegues who works on cnc maybe i can make the base on the cnc (much easyer to make the all shape )but if not a no cnc milling machine is better than a hand saw and a file
i must finish my plan soon but i have to find the bearing too (the site where i find them doesn't answer on phone ,this is a thing i dislike cause if they are not in stock i think i can't wait for long )

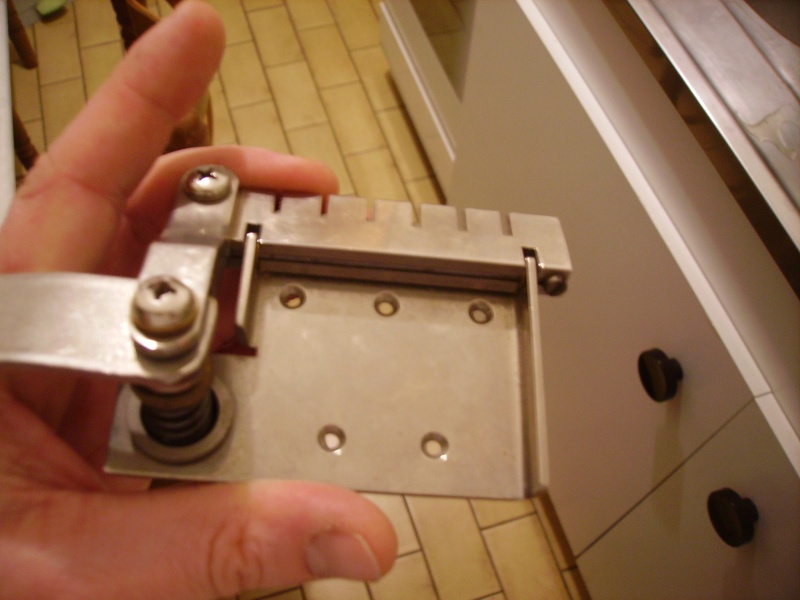

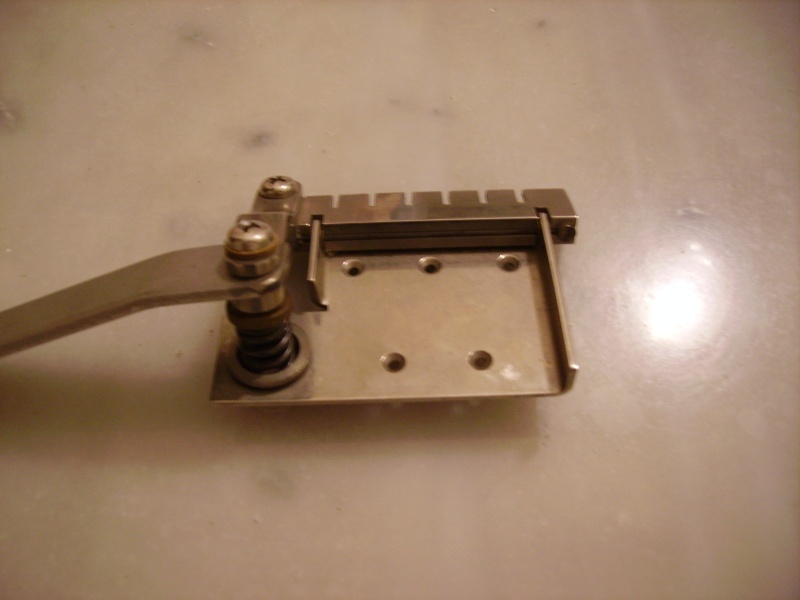

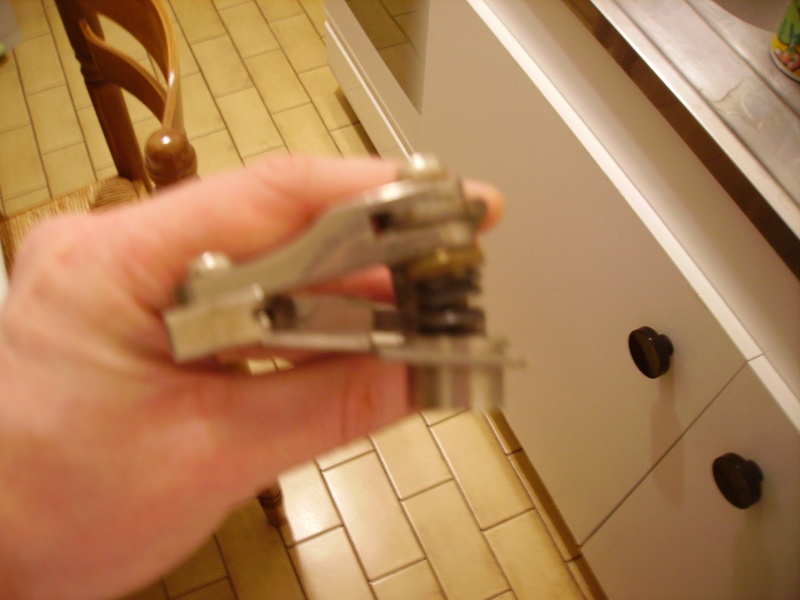

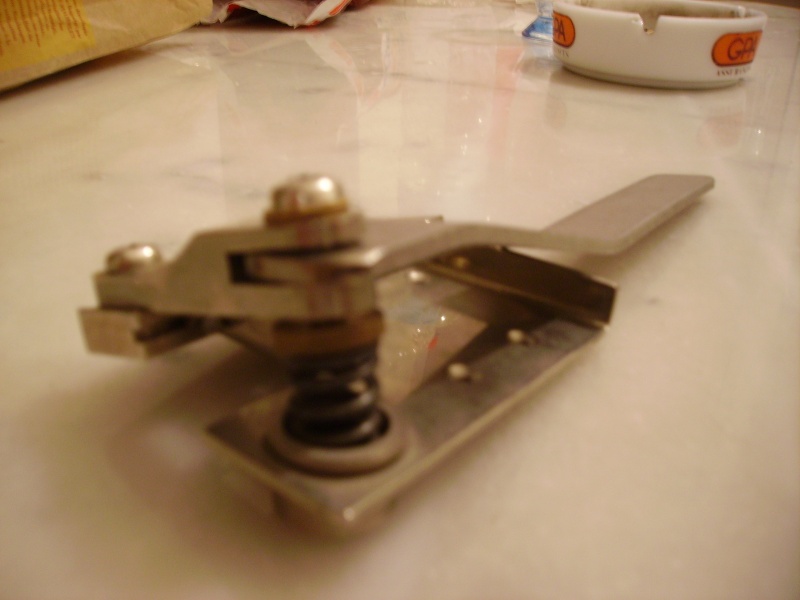

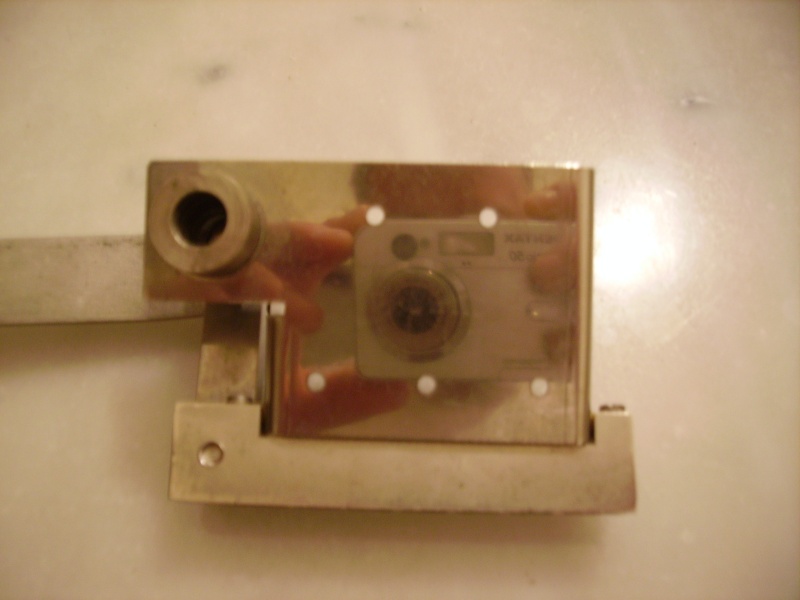

also i have and old vintage trem from teisco or klira or framus ?
that i would exchange for a mosrite trem








this is a great opportunity if you want one

[ludobag]

i have work with inkscape it is not a cao software but i have only that



miss again some mesurements
and in fact a good pic of the trem base

[ludobag]

i have scource my bearing
near my home 7.50€ without taxe one piece and 8€ more for shipping
where i used to live the last year ,a friend find them at 2.30€ without taxe piece without shipping fees

now i wait my springs to beguin

[ludobag]

Hi all
next week i can beguin normally ,i will have my 4 needle bearing 5x9x9 mm
i have scource lot of scrap aluminium for
in thickness 25 mm for base plate and rocking part
and in thickness 15 mm for the arm

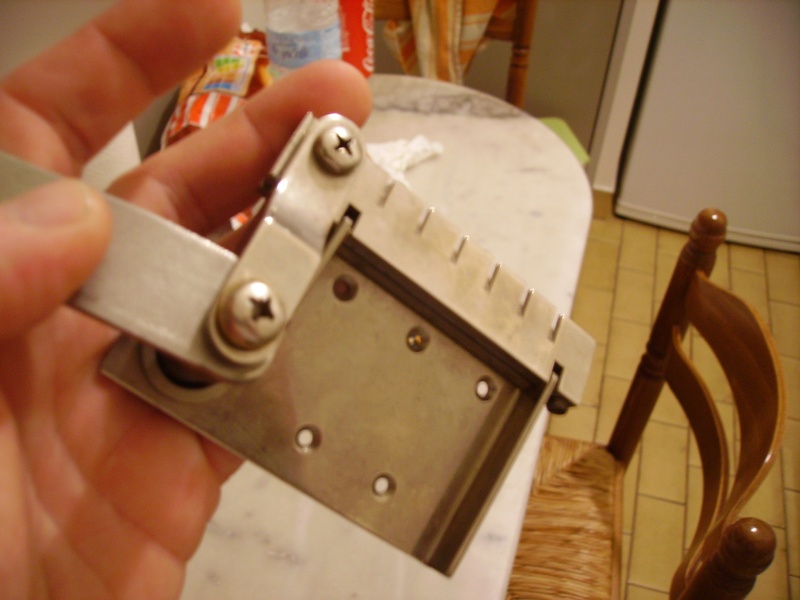

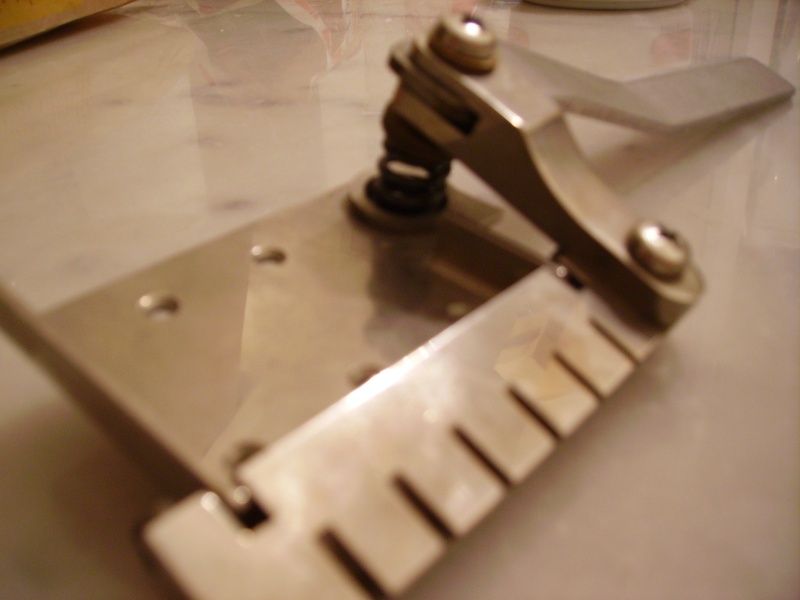

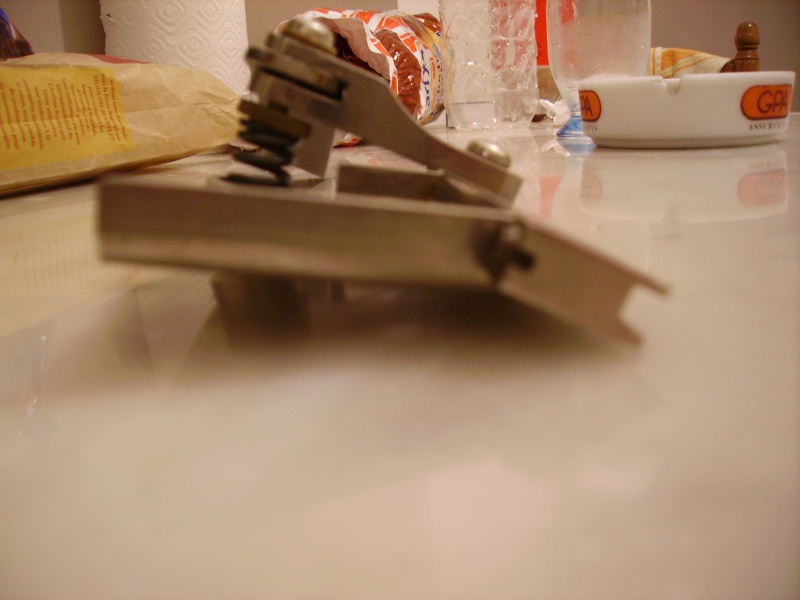

i will made i think a prototype for set up and try and an other when the operation are valided , if all work good maybe i will have 2 trem
i ask if a gentle forumer could help me ?
need to finish my plan ,please

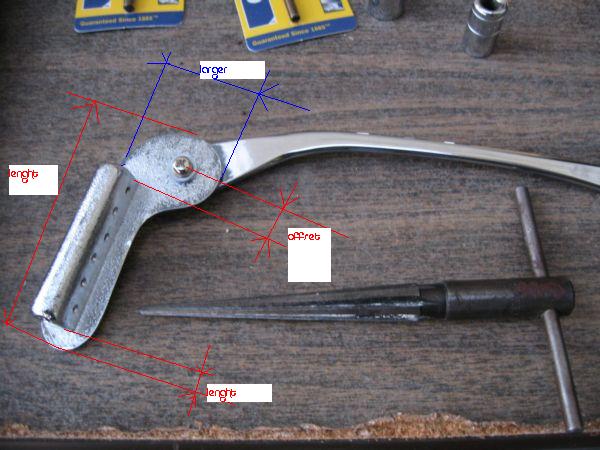

the space between each hole for the strings in the rocking part
and the offset of the hole for the arm in the rocking part to the side where the axis is fixed

for the others mesurements i will improvised to make it nice (maybe not accurate but nice i hope )

[dubtrub]

I will do what I can to help, but I cannot name the measurements with the info you provide. To make it simple, on you drawing give each measurement you desire a letter A,B,C etc. That way I can give you the measurements for each lettered item.

[ludobag]

ok for sur thanks a lot
for me cause i have always the noose in it is clear but in fact ,i must be in my own world
i send you the pics with letters in fews seconds

[ludobag]

i hope it is clear

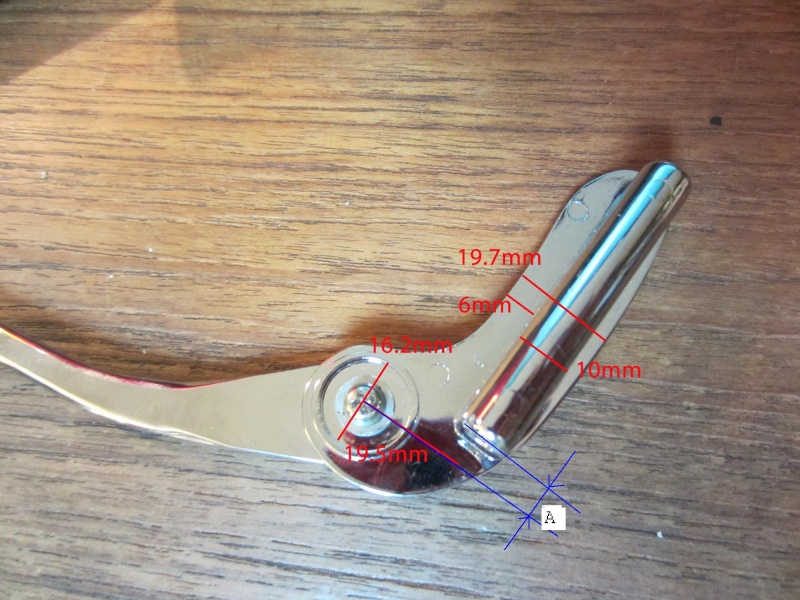

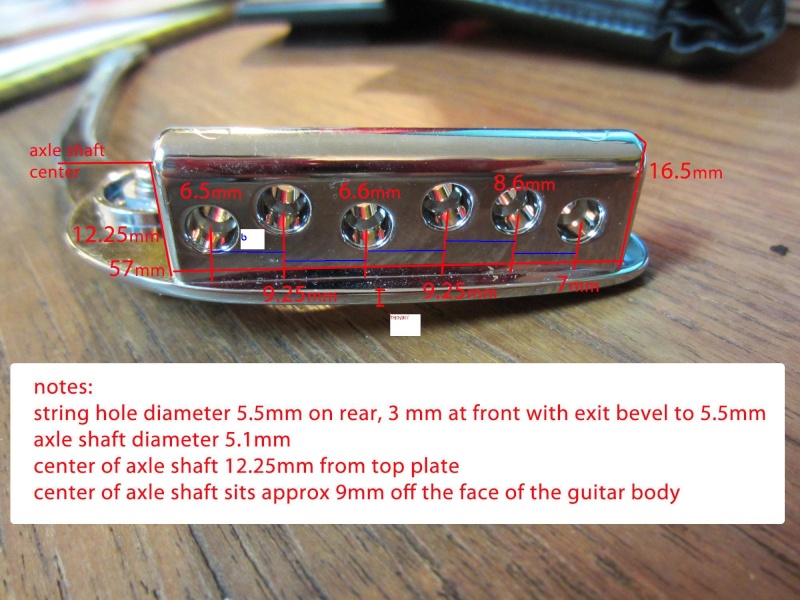

the offset of the hole for the arm in the rocking part to the side where the axis is fixed A


the space between the axis of each hole for the strings in the rocking part B


thanks Dubtrub
