new project half bread guitar

[woodchuck30]

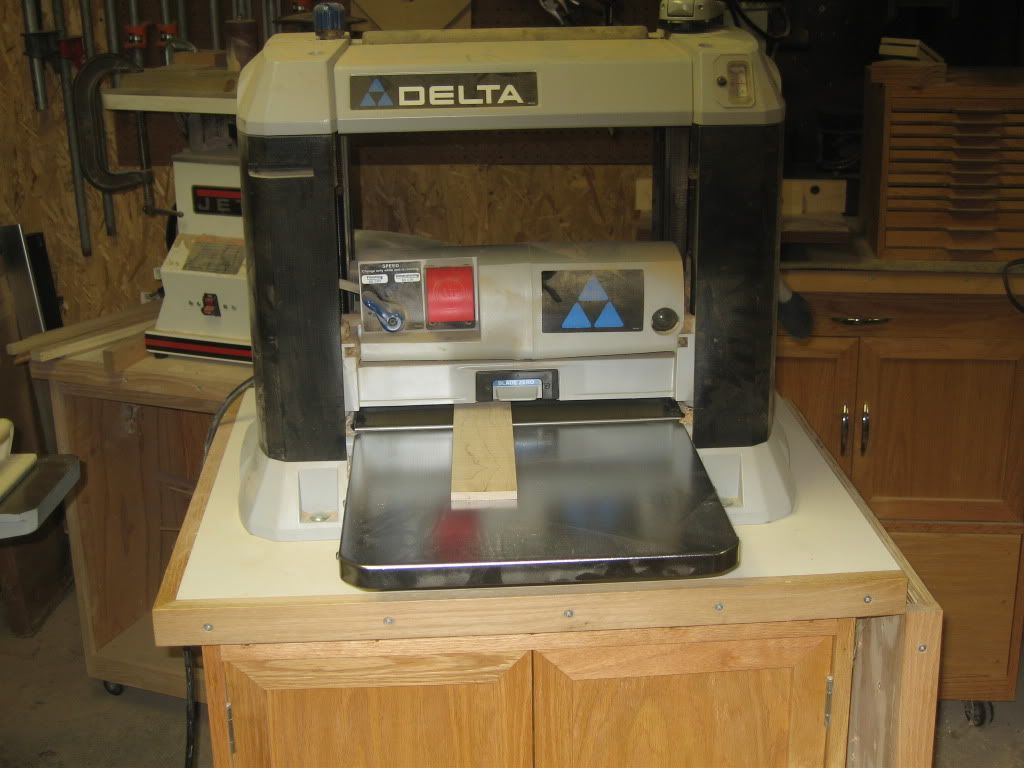

Thickness plaining finger board

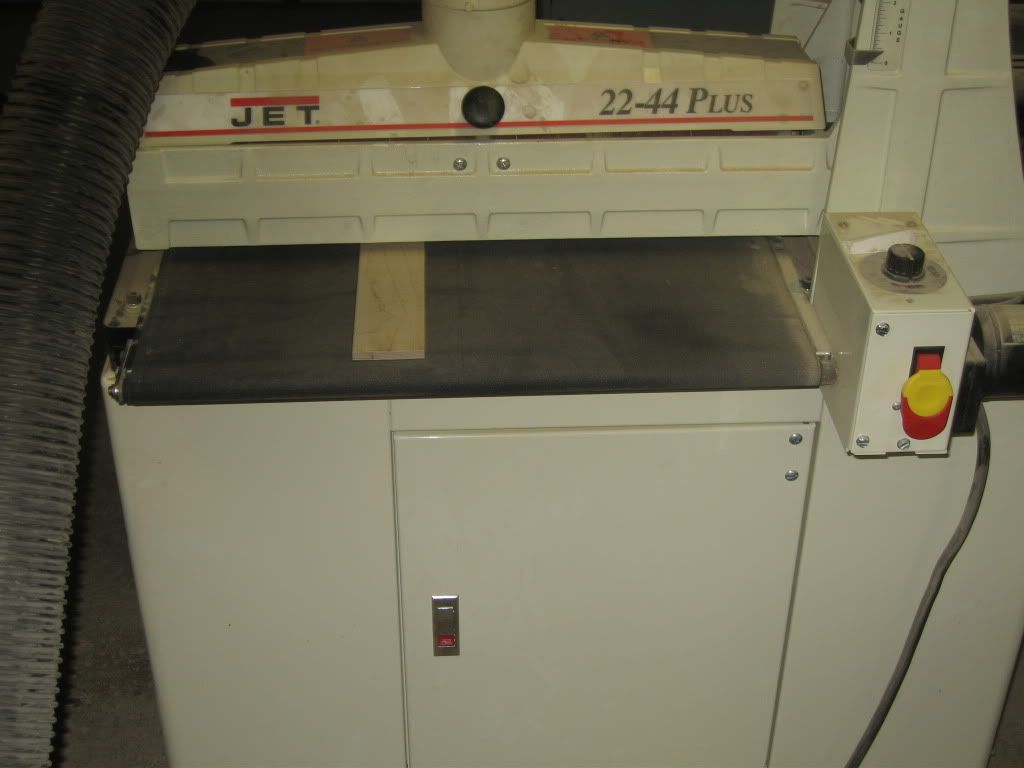

Danding finger board to .250.


Jig setup for cutting frets

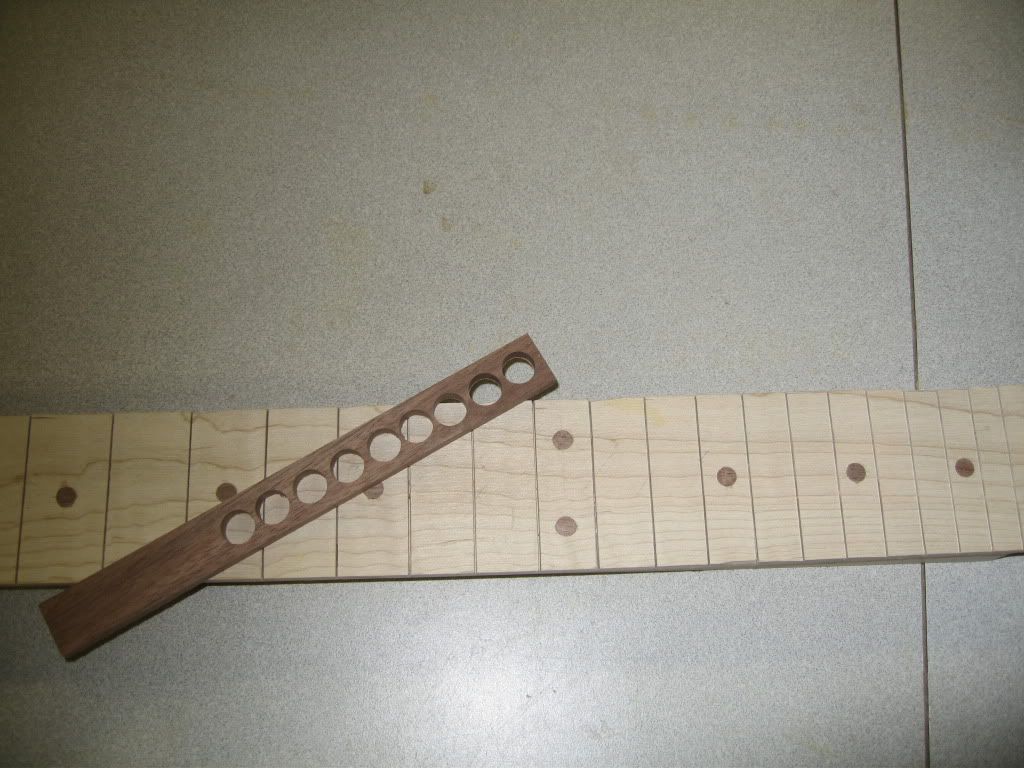

Installed wallnut markers on finger board

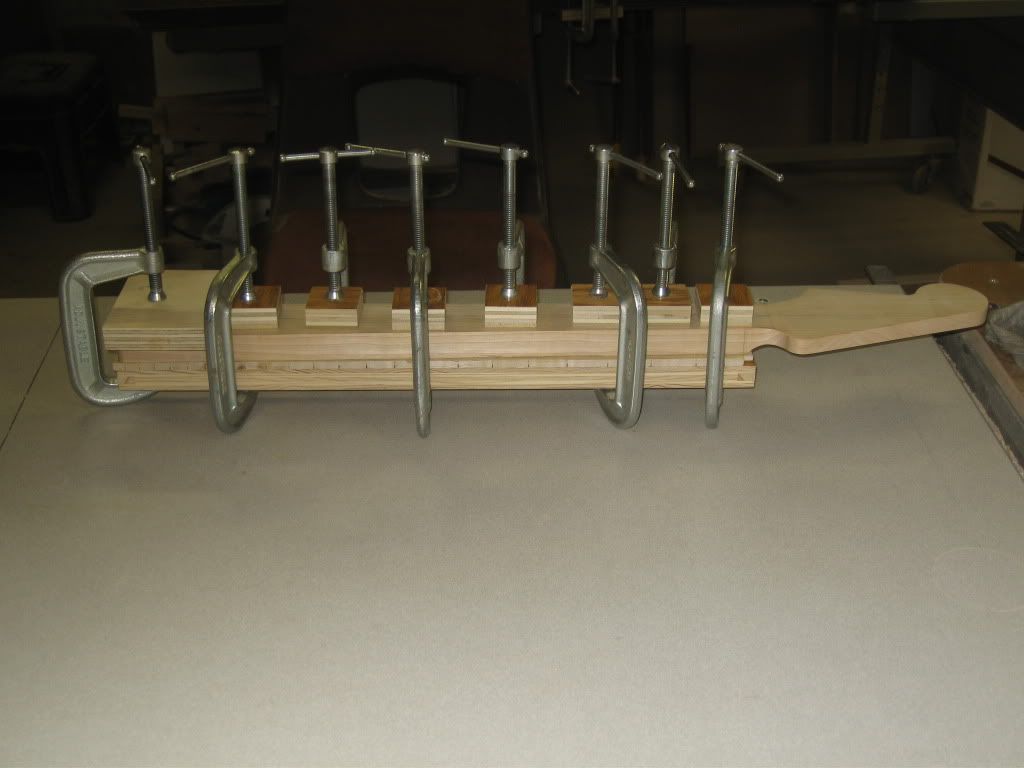

Glueing finger board to neck

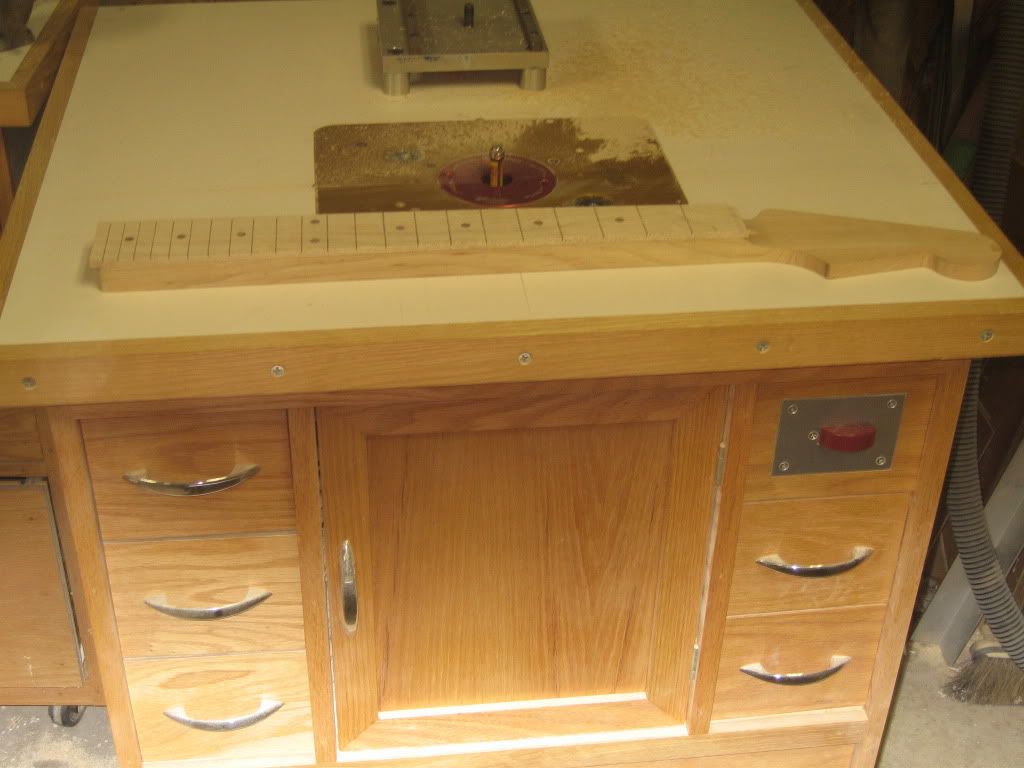

Routering finger board to fit neck

[woodchuck30]

Completed finger board fretted and ready to finish





Hear's some more pics of the project I'm woring on, this will be all for a while until I get some paarts.

[woodchuck30]

Yeah, just posted them tonight, be back soon, gona jump in the rain locker.

[Veenture]

Hey woodchuck30, I hate to be the bringer of bad tidings but check your dot marker on the 18th fret; all my guitars 'say' it should be on the 17th.
I trust you're still in time to remedy that. I admire everyone who has ever made an attemt at making his/her own guitar!
[edit]while you're at it, don't forget to place one on the 19th fret also

[dubtrub]

Hey woodchuch, I hate to be the bringer of bad tidings but check your dot marker on the 18th fret

Woops! Isn't the learning process grand. Certainly looking grand otherwise.Take out that one marker and replace it with an oblong diamond shape piece of Maple and reinsert the wooden makers on each side of it. Everyone will think it is nothing more than a cool looking inlay. Make it look like it was intentional. That's what Semie would have done.

[woodchuck30]

O S.... I always screw up someplacealongtheway. See what I mean No problem, I can cut a plog out of maple and match it in, you won't even know I made the mistake, If you don,t tell

[Veenture]

O S.... I always screw up someplacealongtheway. See what I mean No problem, I can cut a plog out of maple and match it in, you won't even know I made the mistake, If you don,t tell

...we haven't seen it...we know nutin'... (don't forget to put a marker on the 19th fret too...)
And don't you worry...the best guitar makers are the ones who never have (made one)...like me ...

[woodchuck30]

Hay Veenture, If your guitar talks, can it rolover and fetch to??? Thats cool I do appreciate the constructive scrutney, I would have never caught the mistake, I really do appreciate it.

[woodchuck30]

Hay dubtrub, you say it's in the learning process right? Well I better learn to count.

[oipunkguy]

Hey Woodchuck, sweet work, even if there is a bump along the road, it makes it that much more memorable. I'm very jealous of the sweet shop equipment you have. Wish I had a planer and band saw like that!

BTW, what tool did you use to cut out the wood inlay?
