Pearl pickguard!

[MWaldorf]

So, not being one to leave well enough alone, I decided that the pickguard on my MeshuggaMark was just too bright white, and made myself a new one. In the past, this hasn't been a project I would have managed terribly well, but a few weeks ago I bought a scroll saw at a garage sale ($20!) and off I went!

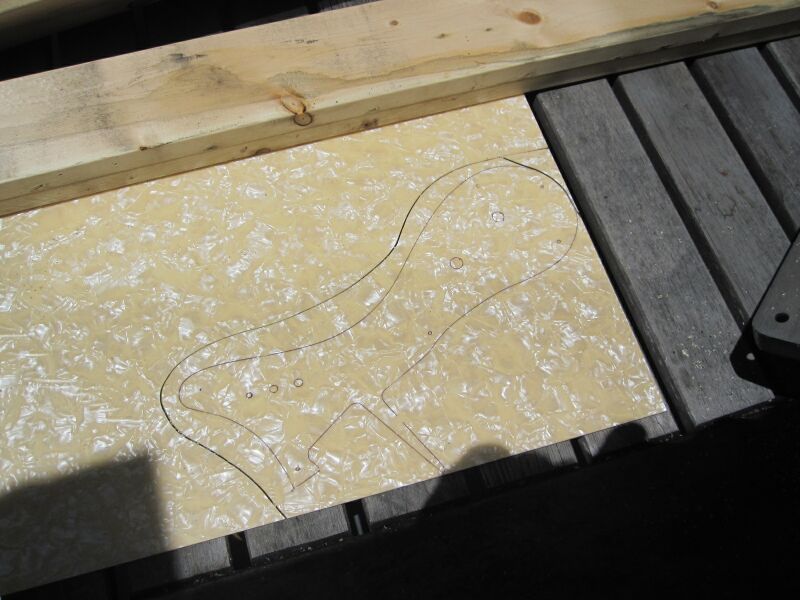

I ordered a sheet of antique mother of pearl three-ply, and started by tracing the shape of the original guard onto the blank. Here's the blank with a first pass cut very wide around the trace.

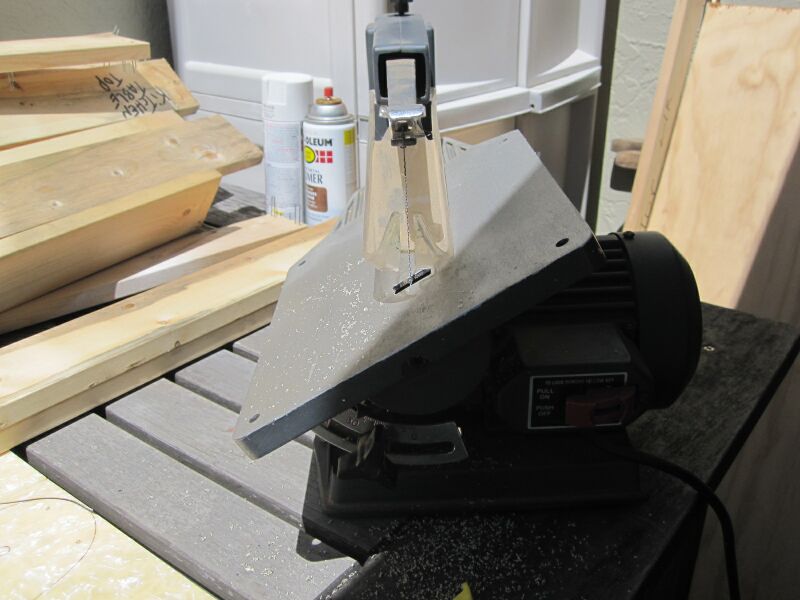

Here's a shot of the scroll saw, showing it's most useful feature (as far as pickguards are concerned) - you can angle the bed to make even bevelled edges. I chose a 30 degree bevel.

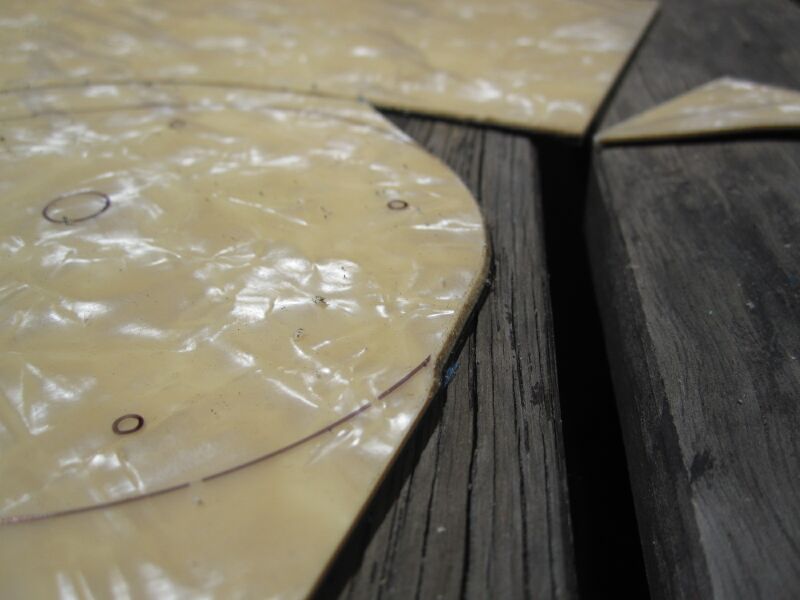

Here's a close up of the 30 bevel. Note that it was important to keep the pickguard moving through the saw; if it staying in one place too long, the plastic guard started to burn.

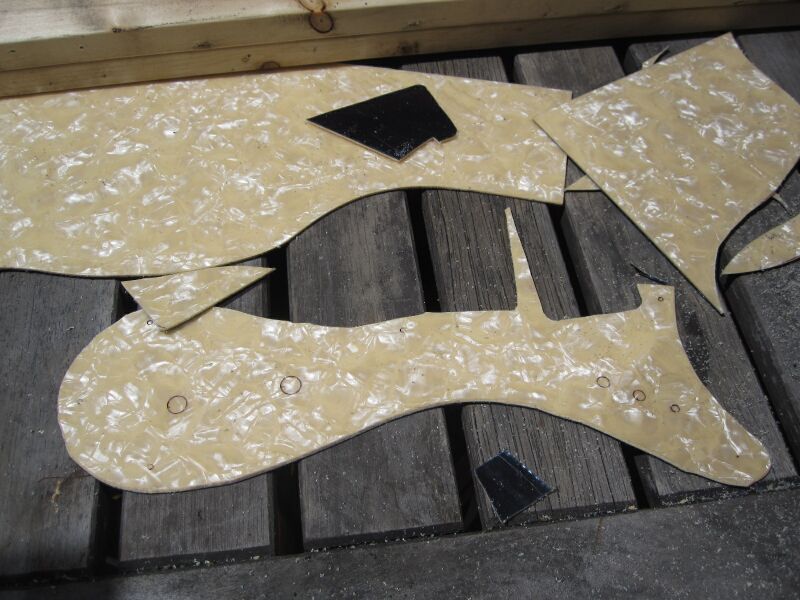

I kept the scroll saw as closed as I could to the trace line, but it wasn't perfect. Here's the guard before I used a series of hand files to smooth out the curves.

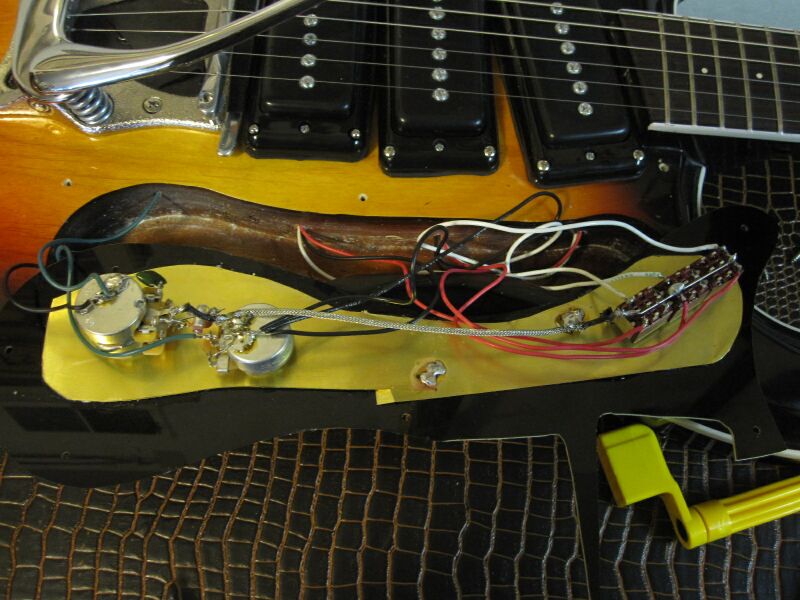

The original pickguard had copper tape shielding underneath. I didn't have any copper tape, but I had some think copper sheets, which I cut to shape with scissors. Here's the guitar wired up. You can see the spot where I had to solder the two copper sheets together, as well as the spot where the electronics are grounded to the shield. I had to be extra careful not to leave the soldering gun on the shield too long as I didn't want to melt the guard from underneath. Also notice the 3PDT switches for the RH-100 split coils and the TBX treble/bass tone control.

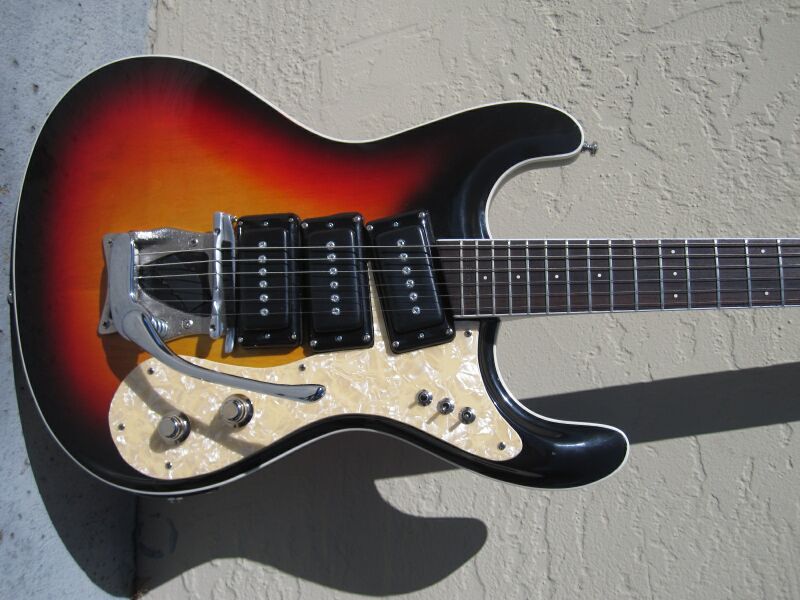

Here's the pickguard installed. It hangs over the edge of the curve a bit below the vol and tone knobs, but no more so than on my 66 Ventures model.

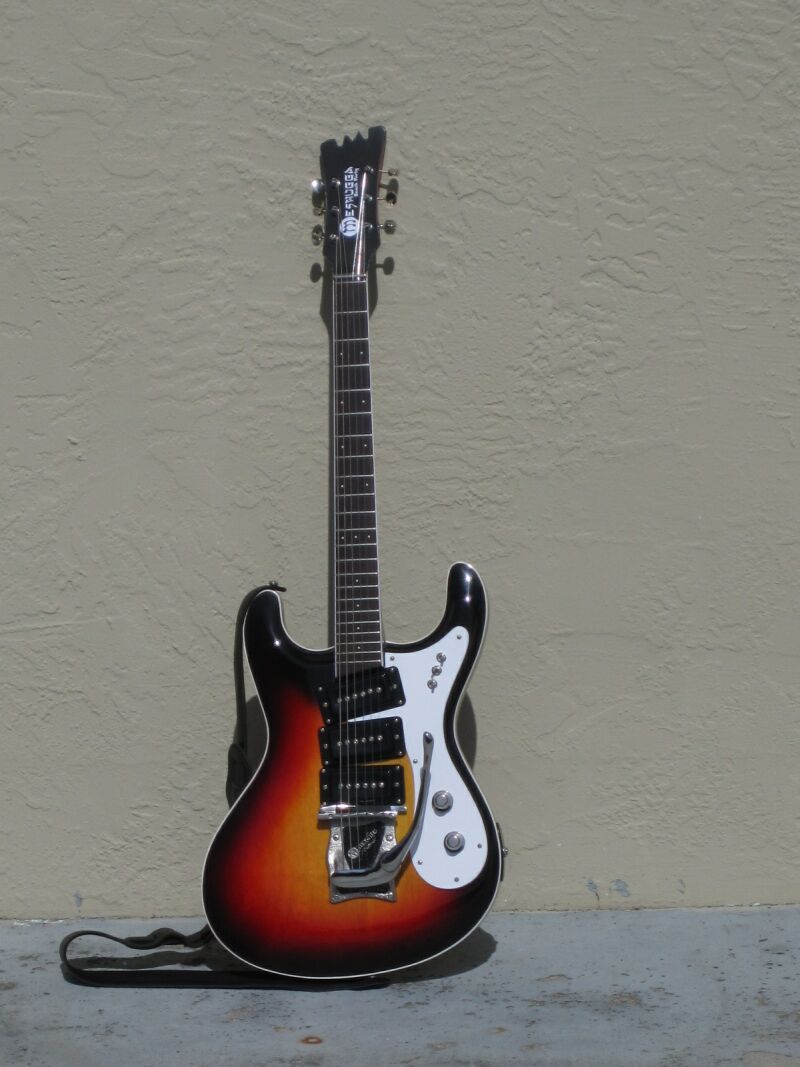

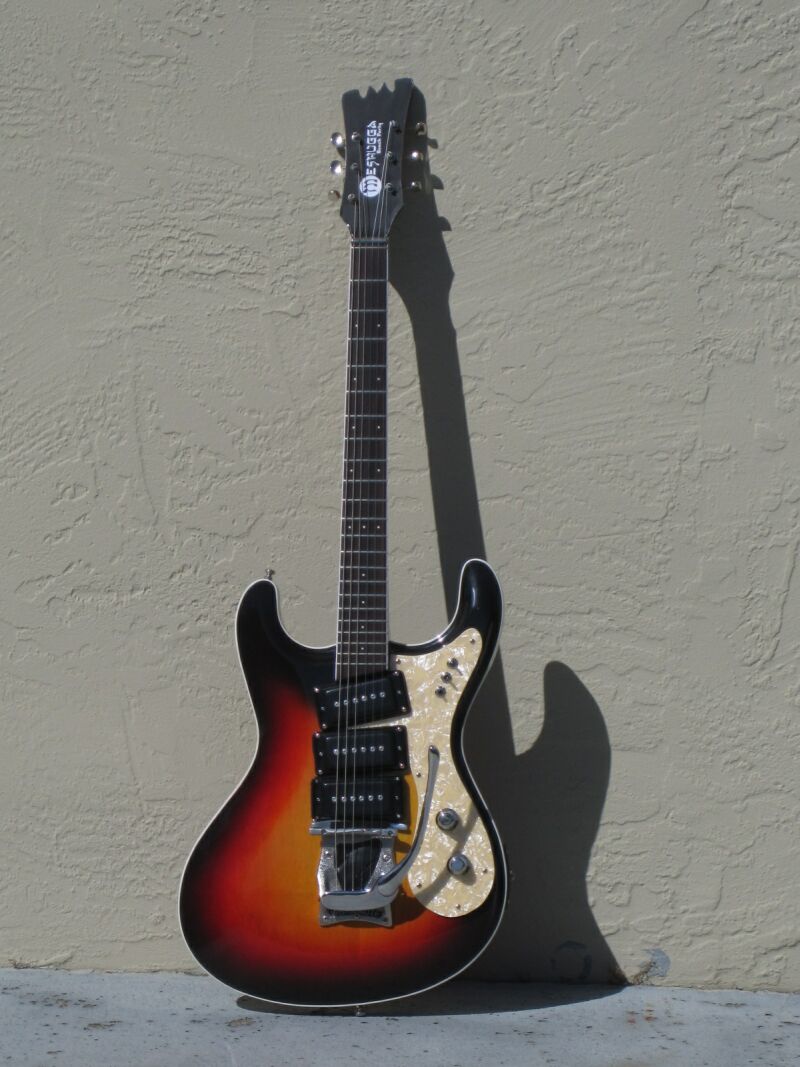

Finally, full body glamor shots, before and after. I think a slightly lighter shade of pearl might have been better, but, to my eyes, still an improvement.
