Make your own nut files, EASY.

Postby panther » Thu May 19, 2011 9:13 pm

I wondered how could I make a set of nut files, when it hit me. Different width hacksaw, saws-all blades etc.
I got several blades from my junk drawer and started to grind and shape. Here are the first 5. I have them hanging right now with the liquid handle coating the end to make them safe to hold.
The hardest one obviously was the .010, but I started with a .025 hacksaw blade, and ground a little at a time and checked often. I used a table belt sander.

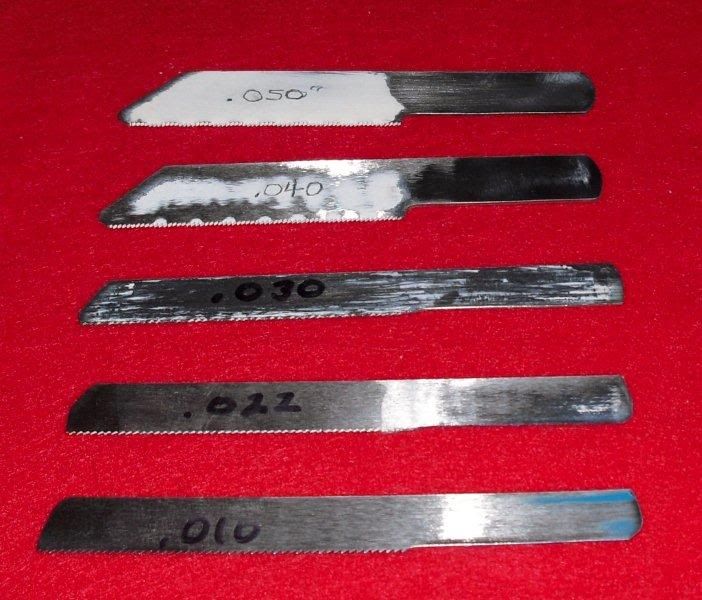

Here is a photo of the ground down blades.
Dan

"The More People I Meet, The More I Miss My Dog"

User avatar
Sarah93003
Master Contributor
Posts: 3812
Joined: Tue Mar 10, 2009 4:26 pm
Location: Westlake Village, CA
Contact:

Re: Make your pwn Nurt files, EASY.

Postby Sarah93003 » Thu May 19, 2011 10:38 pm

Cool idea! Don't you need six?
____________________
1965 Mosrite Celebrity Prototype with Vibramute
1972 Mosrite Celebrity-III
1977 Gibson MK-53
1982 Fender Bullet
1994 Gretsch Streamliner G3155 Custom
2005 Gibson Les Paul Standard Plus
2006 Jude Les Paul 12 String

User avatar
dubtrub
Administrator
Posts: 3795
Joined: Sun May 04, 2008 10:12 am
Contact:

Re: Make your pwn Nurt files, EASY.

Postby dubtrub » Thu May 19, 2011 10:53 pm

That's all I've been using for years to cut the slots then I use a torch tip cleaner to round out the bottom of the slot. They can be had for around $6.00 at Harbor Freight.

Danny Ellison

User avatar
panther
Top Producer
Posts: 817
Joined: Tue May 03, 2011 8:31 pm
Location: Anza, California
Contact:

Re: Make your pwn Nurt files, EASY.

Postby panther » Thu May 19, 2011 11:37 pm

I've heard about using torch tip cleaners to round out the bottom.
Hope someone can use the idea.
I've never touched a guitar before 10 months ago, so everything is still new to me.
Dub, could you fix the spelling in the title please, sometimes I get ahead of myself typing.
Dan
"The More People I Meet, The More I Miss My Dog"

User avatar
panther
Top Producer
Posts: 817
Joined: Tue May 03, 2011 8:31 pm
Location: Anza, California
Contact:

Re: Make your pwn Nurt files, EASY.

Postby panther » Thu May 19, 2011 11:42 pm

Sarah93003 wrote:Cool idea! Don't you need six?

Don't know never counted the strings before. How many are there ? :roll:
Dan
"The More People I Meet, The More I Miss My Dog"

User avatar
MWaldorf
Site Admin
Posts: 3264
Joined: Sat May 24, 2008 1:21 pm
Location: Alameda, California
Contact:

Re: Make your own nut files, EASY.

Postby MWaldorf » Fri May 20, 2011 12:23 am

Cool idea Dan. I fixed the title, btw.
(Moderator) Mel
Oy vey - it's MESHUGGA BEACH PARTY - The world's premier Jewish Surf Music Band!


What? Couldn't tell the logo is a link? So click here, what's the hold up? http://www.meshuggabeachparty.com

User avatar
Sarah93003
Master Contributor
Posts: 3812
Joined: Tue Mar 10, 2009 4:26 pm
Location: Westlake Village, CA
Contact:

Re: Make your pwn Nurt files, EASY.

Postby Sarah93003 » Fri May 20, 2011 6:52 am

panther wrote:
Sarah93003 wrote:Cool idea! Don't you need six?

Don't know never counted the strings before. How many are there ? :roll:
Dan



I was just showing off my math skills. :mrgreen:
____________________
1965 Mosrite Celebrity Prototype with Vibramute
1972 Mosrite Celebrity-III
1977 Gibson MK-53
1982 Fender Bullet
1994 Gretsch Streamliner G3155 Custom
2005 Gibson Les Paul Standard Plus
2006 Jude Les Paul 12 String

gooberman
Regular Member
Posts: 18
Joined: Mon May 09, 2011 8:57 am
Location: Canada
Contact:

Re: Make your own nut files, EASY.

Postby gooberman » Fri May 20, 2011 8:11 am

great idea! I used the feeler guage idea with the sides notched a little...I bet your idea would be much faster!

User avatar
olrocknroller
Top Producer
Posts: 810
Joined: Mon Jul 26, 2010 1:22 pm
Location: Canada
Contact:

Re: Make your pwn Nurt files, EASY.

Postby olrocknroller » Fri May 20, 2011 10:04 am

dubtrub wrote:That's all I've been using for years to cut the slots then I use a torch tip cleaner to round out the bottom of the slot. They can be had for around $6.00 at Harbor Freight.



Neat trick! Thanks! 8-)
Olrocknroller

User avatar
panther
Top Producer
Posts: 817
Joined: Tue May 03, 2011 8:31 pm
Location: Anza, California
Contact:

Re: Make your own nut files, EASY.

Postby panther » Fri May 20, 2011 12:52 pm

I ordered me a new set of the torch cleaners. The ones I have are from work, and kinds dirty.

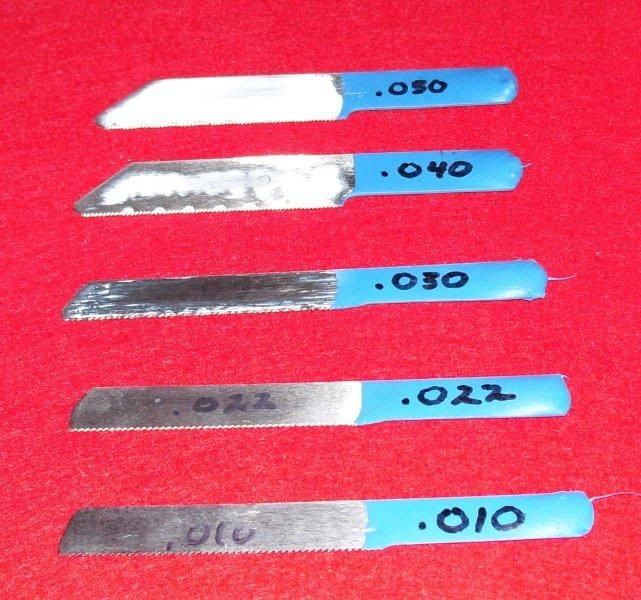

Here is a photo of the coated handles.
Dan

"The More People I Meet, The More I Miss My Dog"
